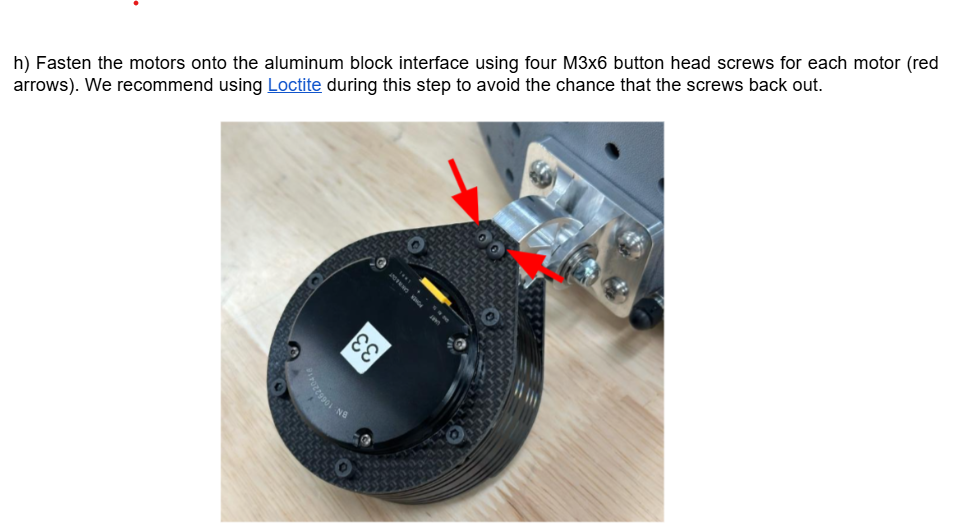

while I am assembling the abductionblockouter to motors. The wiki says to use M3 screws but it cant fit in the block. I checked with 3d model which i used to fabricate aluminium where the holes has diameter of 2.5mm, which is same has my fabricated part, and there are no threads inside the holes, how to fit it. Help me, am i making any mistake?
Hello @harshithdeshalliravi,
Apologies for the confusion here. Yes these holes need to be tapped deep enough for an M3x6 screw.
The Biomechatronics Lab is in the habit of ordering machined part with the holes bored but not tapped and tapping them in house. We will update this section of the wiki and search for any other places where this happened and update them. If you notice any more that have escaped our notice please feel free to update us on this forum so we can address them.
I hope this helps and feel free to reach out with any more questions/concerns
