22/01/2026 10:55 pm
Topic starter

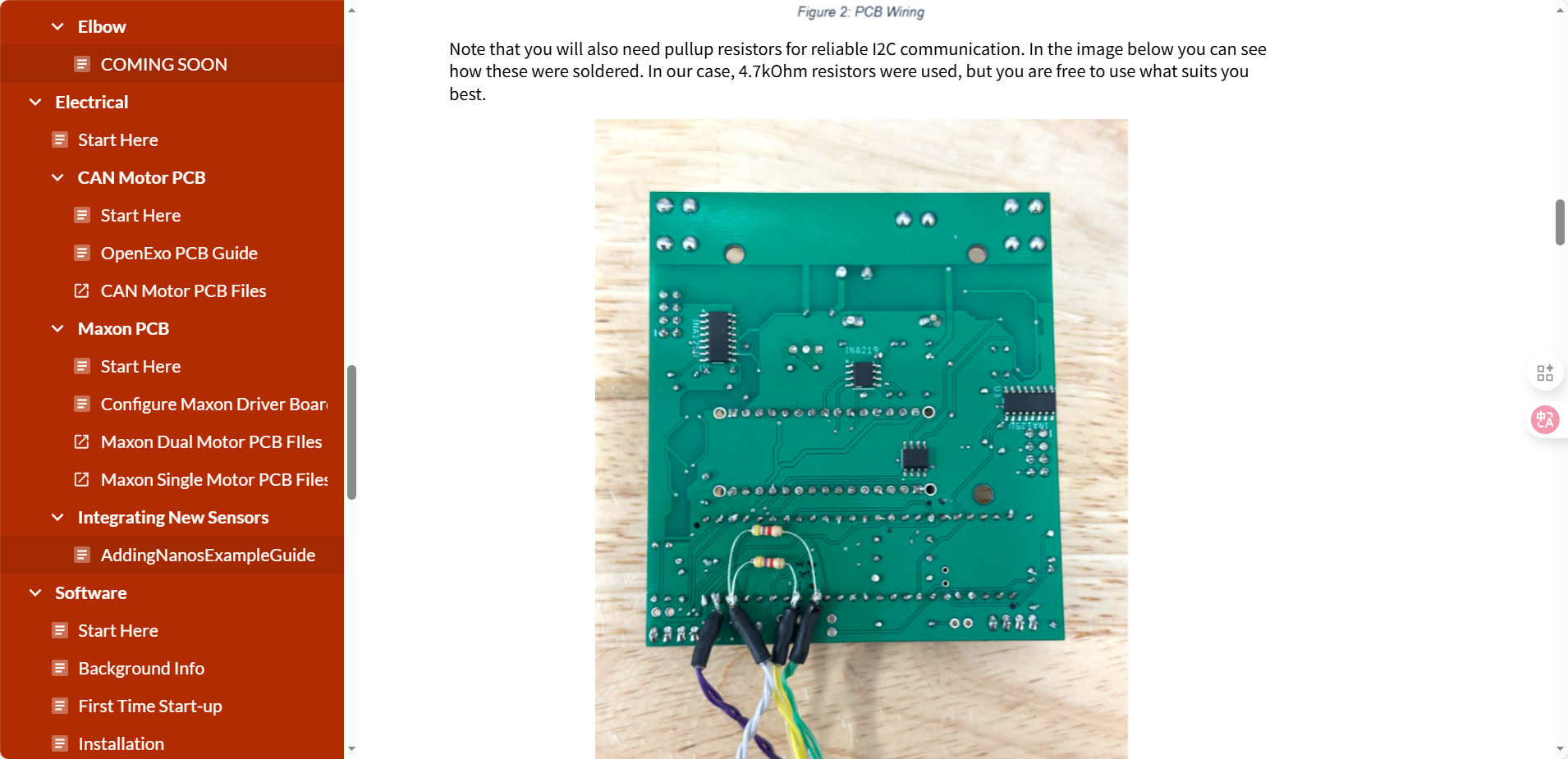

Dear Development Team,In Figure 1, gray and purple represent the ground and power sections, respectively, while green and yellow wires are used for the I²C lines. However, in Figure 2, the I²C pull-up resistors are connected to the gray line, which pulls the signal lines low. Could this be an error in the illustration? We sincerely look forward to your clarification.
1 Answer
0
23/01/2026 12:02 pm
Sorry for the confusion! The document was worded incorrectly: the grey wire is power and the purple wire is ground. The wiring seen on the PCB is the correct configuration. I just fixed the wording in the document.
